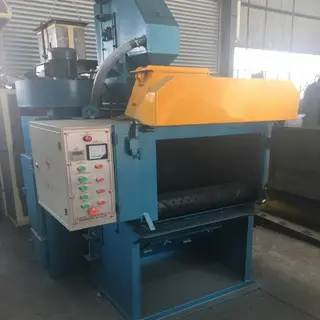

Steel Belt Tumblast Machine, Deburring
Key Specifications / Features
Model No.: JX-TSB-01 Hits: 123
Steel Belt Tumblast Machine Manufacturer JX Supplies Steel Belt Tumble Shot Blasting Machine, Deburring For Plastic And Rubber Parts, Small Parts.
Request a quoteDetail Infomation
Characteristics
| Tumble | Steel Belt | Batch Type |
Description

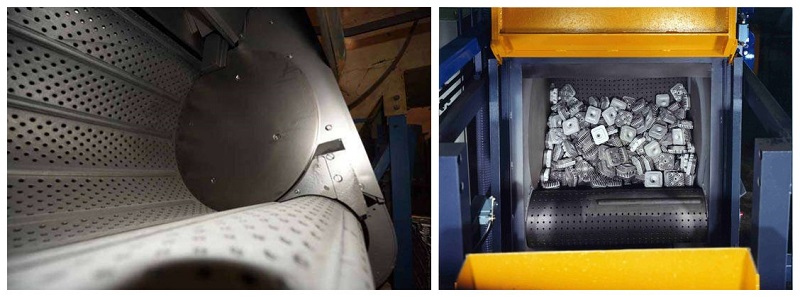

Tumblast Casting machines (MB) are used for bulk, tumble proof material. The product range includes a comprehensive range of machines for desanding and decoring castings and for descaling forgings or heat-treated work piece. The work piece are continuously tumbled during the blasting process. A special anti-abrasive rubber belt arranged as a cradle receives the pieces to be treated and with its movement maintains them in a constant tumble.
Application
1. Desanding and decoring of castings.
2. Descaling of castings, forgings and heat treated parts.
3. Shot peening (without process security).
4. Deburring of plastic and rubber parts.
Details
Technical Parameters
| Rubber Tumblast Machines | |||
| Type | DX324 | DX326 | DX3210 |
| Productivity (kg/h) | 400-600 | 600-1200 | 1500-2500 |
| Max. piece weight (kg) | 5 | 10 | 20 |
| Max. load weight (kg) | 100 | 200 | 600 |
| No.of blast nozzles / power (kw) | 1×4 | 1×7.5 | 1×11 |
| Ventilation capacity (m3/h) | 1300 | 2000 | 5500 |
