Short Description

Model No.: JX-BSB-01 Hits: 49

Belt Shot Blast Machine Manufacturer JX Supplies Belt Shot Blast Machine with Metal Wire Mesh Conveyor, Continuous Blasting for Aluminum Die-castings.
Request a quote Share

Key Specifications / Features

Characteristics
Automatic  Wire Mesh Belt Continuous

Description

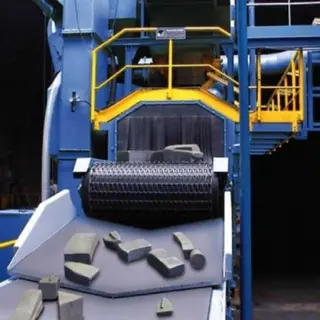

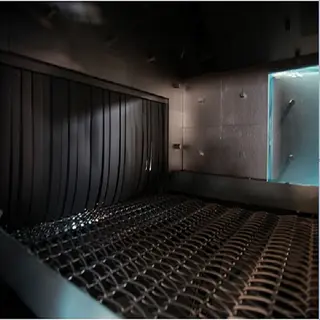

The work-pieces are placed on the wire mesh conveyor with high wear resistance, shot blasted both above and below in single pass through the blast chamber. The progress speed of the metal wire mesh conveyor and the blast wheel rotation can be changed through the inverter. The number of blast wheels and the installed powers can vary depending on the models.

Application
Automatic Wire Mesh Belt Shot Blasting Machines are used for the treatment of Aluminum die-castings and alloys (automotive, alimentary, furnishing, lighting, telecommunications, electric tools fields, etc.), cast iron castings, steel pressing pieces, brass molded pieces.

Details
Belt Shot Blasting Machine, with Metal Wire Mesh Conveyor


Technical Parameters
Wire Mesh Belt Conveyor Shot Blasting Machine
Item&Type DX60 DX80 DX100 DX120
Width of net (mm) 600 800 1000 1200
Cleaning speed (m/min) 0.5-2 0.5-2 0.5-2 0.5-2
Shot blasting rate (kg/min) 4-120 4-150 4-180 4-250
JX Blast can provide a customized designed solution to fit your requirements with our engineering and production facilities and we're so proud that our machines meet with a favorable reception from our customers.
