Short Description

Model No.: JX-RCS-09 Hits: 55

Metal Sheet Shot Blaster Manufacturer JX Supplies Automatic Metal Sheet Shot Blasting Machine with Durable Parts, Suitable for Blasting Sheet Metal.
Request a quote Share

Key Specifications / Features

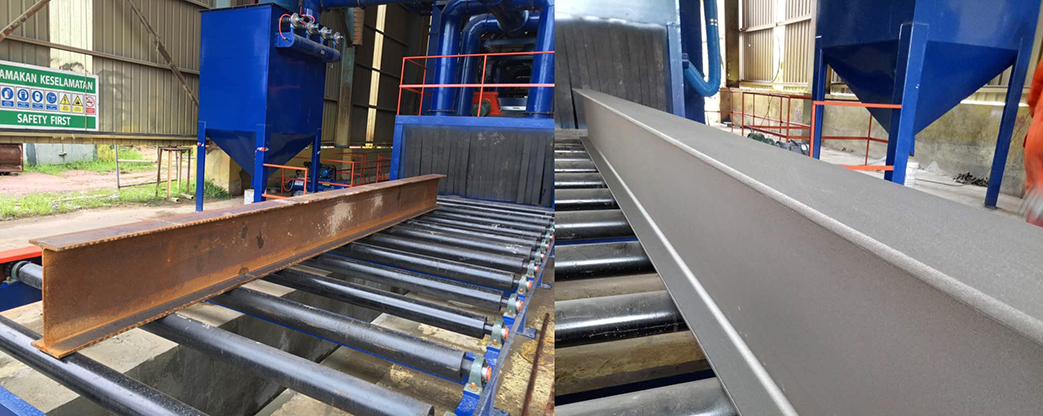

JX automatic sheet metal shot blasting machines are featured by high quality and durable parts, suitable for the blasting of profiles and plates. They are definitely effective for wear prevention.

Name Unit Parameter

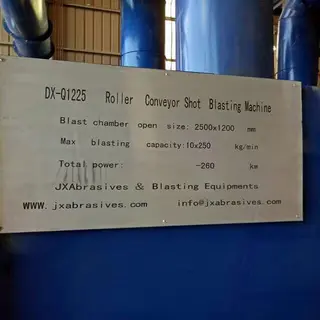

Blast chamber open size mm L2500×H1200
Steel plate width mm ≤2300
  length mm 3000 - 12000
  thickness mm 6~40
Steel structure width mm ≤2000
  height mm ≤1000
  length mm 3000~12000
Material and strength Q235, Q345, Q390 (Marine) A, B, C, D (steel), (Marine) AH32, AH36, DH32, DH36, EH36
Working speed for conveyor m/min 0.5~4(frequency speed control)
Max. Loading for conveyor kg/m 1000
Surface cleaning   A-B Sa2.5 grade GB8923-88(ISO8501)
Surface roughness μm Ra40~75(according to the size of steel shot )

Total power consumption
Total power kw ≈263
  Compressed air consumption m³/min 1 - 3
  Air pressure MPa 0.4 - 0.6
Whole line Max. height mm Up ground ≤7000(belowed ground≤2190)
  Total length mm 34500
The request for foundation   Waterproof

Technical data as below:
1. Blasting chamber
Blast Chamber Open Size: 2500mm - 1200mm.
2. Roller conveying system
Working speed: 0.5 - 4 m/min
Power: 4x2 kw
3. Blasting nozzles
Model: Q034H
Shot blasting volume: 250 - 10 kg/min
Power: 15 - 10 kw
Quantity: Set 10
4. Portrait & horizontal Screw Conveyor
Portrait Delivery capacity: 150 t/h
Power: 7.5 kw
Horizontal delivery capacity: 150 t/h
Power: 5.5 kw
5. Bucket Elevator
Lifting capacity: 150 t/h
Power: 11 kw
6. Separator
Separating capacity: 150 t/h
Air speed in separating area: 4 - 5 m/s
Power: 5.5 kw
7. Dust Collector system
Pulse cartridge Dust Collector
Quantity: set 2
8. Reverse Blower
Air volume: 9000 X 2 m³/h
Power: 18.5+ 11 kw
9. Lifting system for cleaning Brush
Lifting distance: 0 - 1200 mm
Power: 2.2 x2 kw
10.Cleaning brush
Diameter of brush: 600 mm
Power: 3 kw
Total Power Total power: 263 kw
Total air volume: 38000 m³/h
